Cuplock System & Fittings

Modular cuplock scaffolding components for fast assembly, rigid locking, and dependable high-load support on construction and infrastructure sites.

PRODUCT CATALOGUE
Vertical / Standard
PI-021

Vertical / Standard

  • 3.0 MTR — 13.500 kg
  • 2.5 MTR — 11.250 kg
  • 2.0 MTR — 9.100 kg
  • 1.5 MTR — 6.850 kg
  • 1.0 MTR — 4.600 kg
  • 0.5 MTR — 2.300 kg
Horizontal / Ledger
PI-022

Horizontal / Ledger

  • 2.0 MTR — 7.250 kg
  • 1.8 MTR — 6.500 kg
  • 1.5 MTR — 5.450 kg
  • 1.2 MTR — 4.360 kg
  • 1.0 MTR — 3.600 kg
  • 0.9 MTR — 3.250 kg

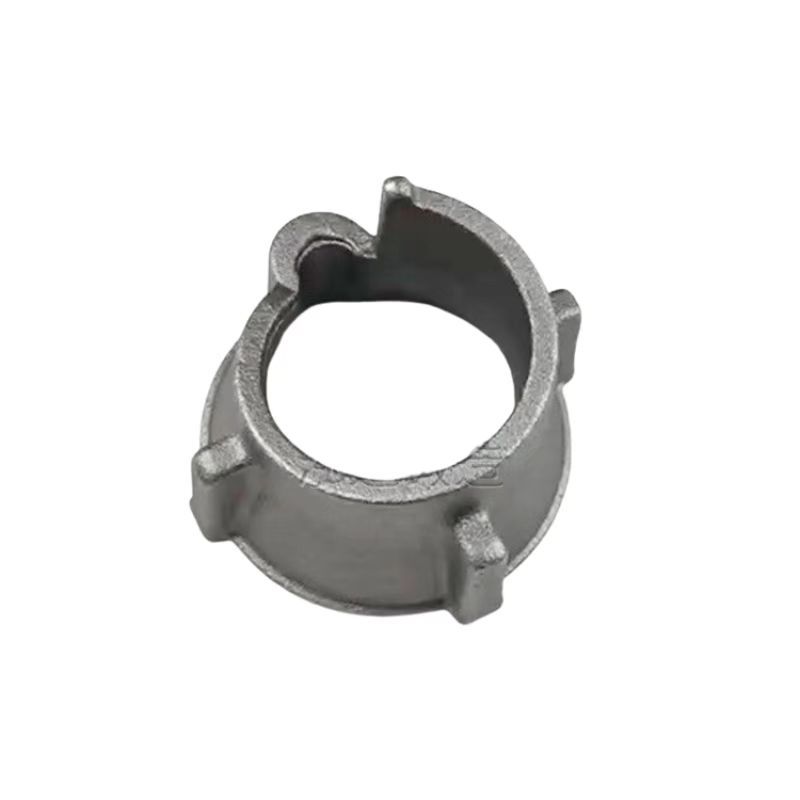

Forged Top Cup

Forged Top Cup

  • 320 gm
  • 350 gm
  • 400 gm
  • Self finish
  • HDG available
  • Raw material: TMT and EN8

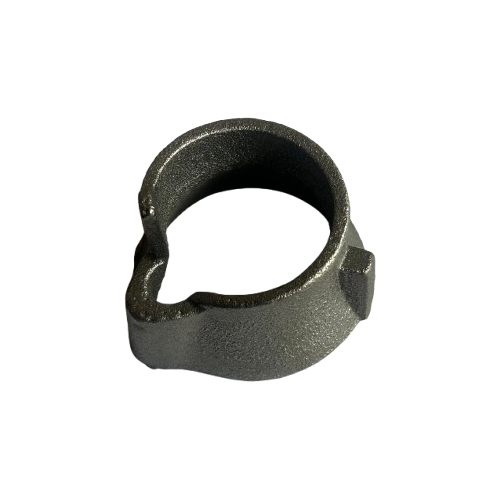

Casted Top Cup

Casted Top Cup

  • 350–380 gm

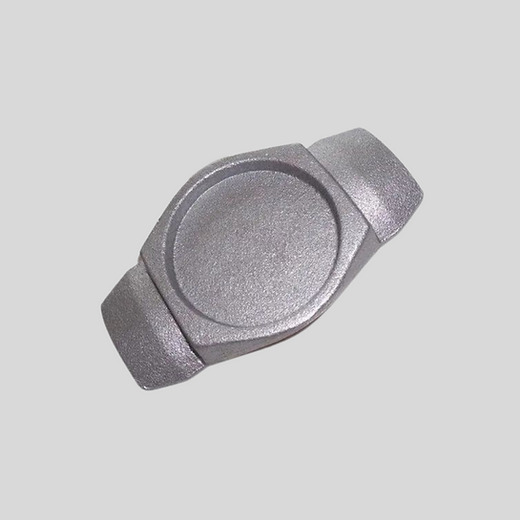

Ledger Blade
PI-019

Ledger Blade

  • 150 gm
  • 170 gm
  • 200 gm
  • 220 gm
  • Self finish
  • Raw material: fresh round bars and EN8
Ledger Blade With Hole
PI-020

Ledger Blade With Hole

  • 180 gm
  • 200 gm
  • 220 gm
  • Raw material: fresh round bars and EN8
Bottom Cup
PI-018

Bottom Cup

  • 160 gm
  • 180 gm
  • 200 gm
  • Made from HR coil

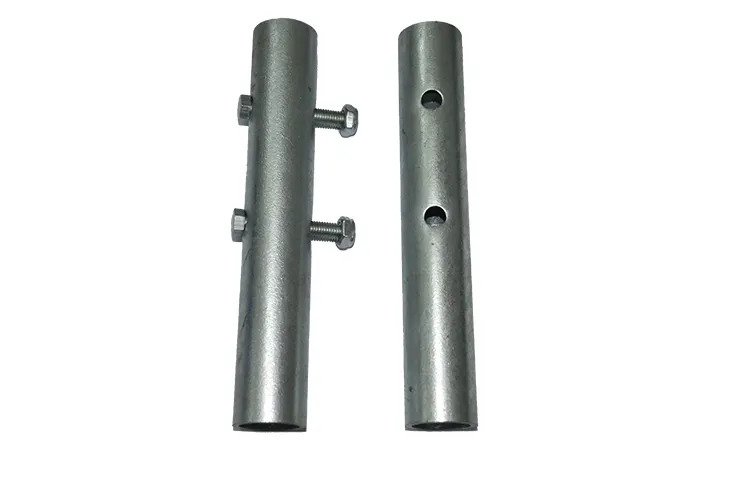

Joint Pin With Ring

Joint Pin With Ring

  • Scaffolding accessory

Need a custom requirement?

If your required specification is not listed yet, send the dimensions, finish and quantity to our team.
